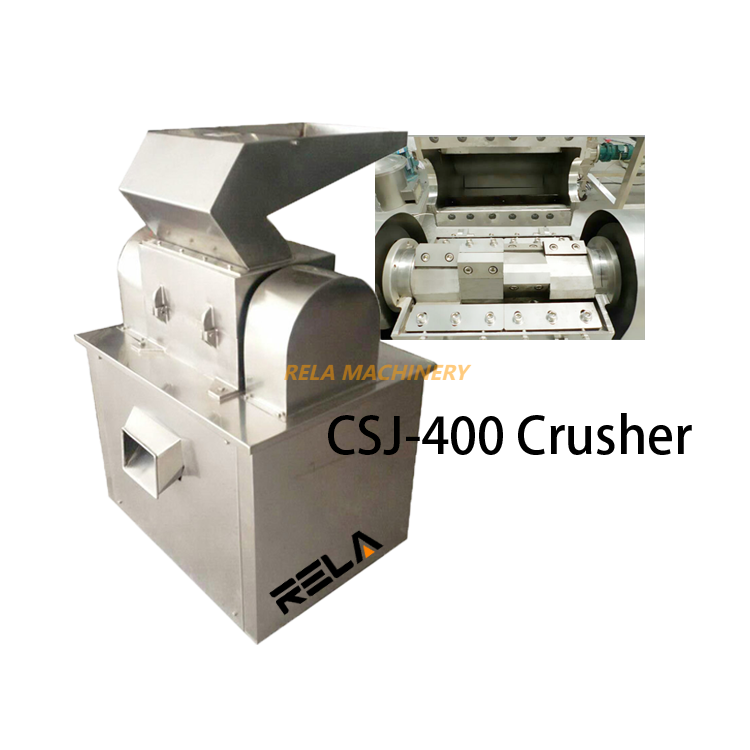

RELA crusher (CSJ) is used to make the small granule or pieces roughly as the pre-processing equipment of the fine mill.

Product Description

Application:

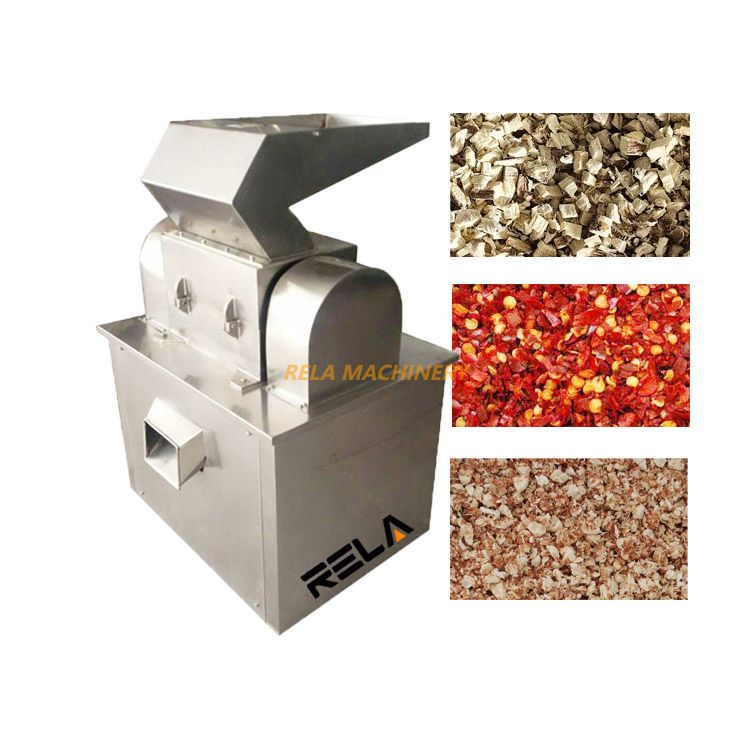

RELA crusher (CSJ) is used to make the small granule or pieces roughly as the pre-processing equipment of the fine mill. It is widely application for pharmaceutical industry, chemical industry, foodstuff industry, etc., which has better crushing effect for any material without limitation on its viscosity, hardness, softness and fiber etc..

Working Principle:

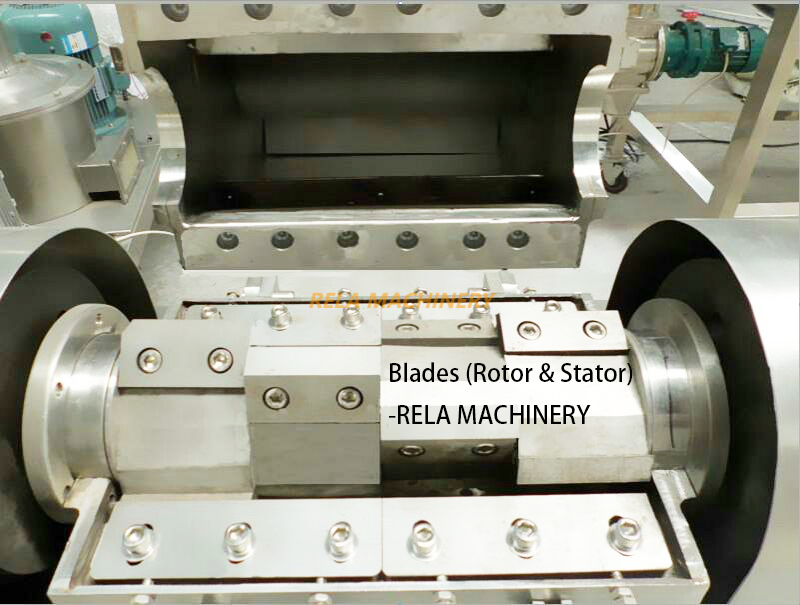

This machine is designed with horizontal structure. There are several fixed blades as stator and several movable blades as rotor. The big raw material, being fed into the crushing chamber through a hopper, is sheared, cut, impacted into small size by the fixed blades and movable blades. The crushed product goes out automatically via a sieve.

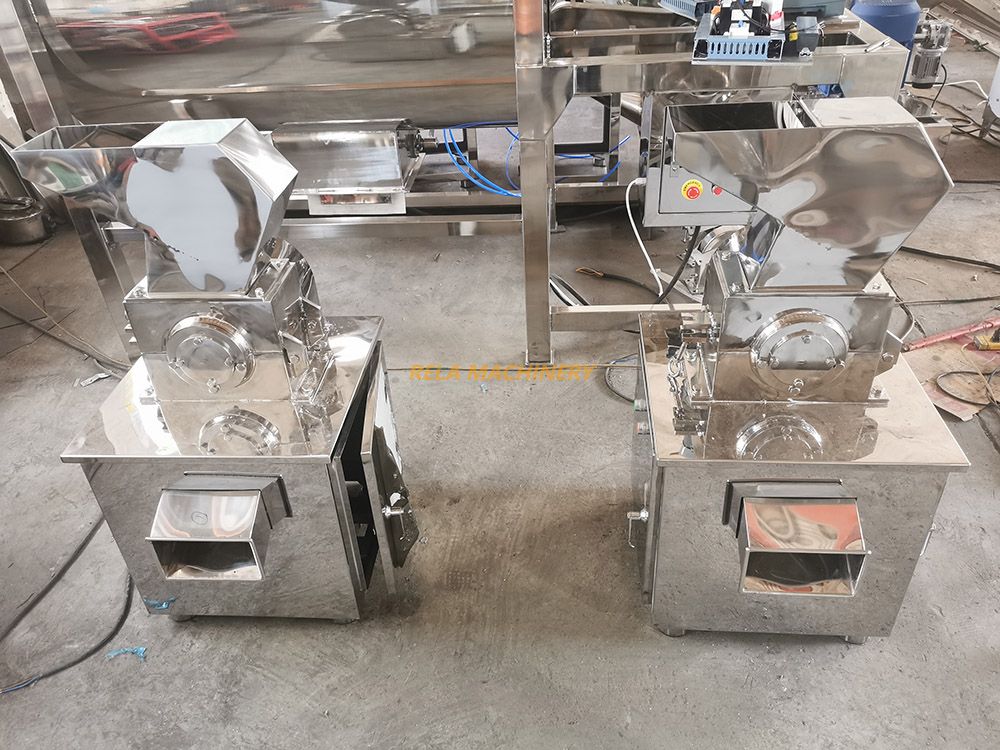

It is designed according to cGMP standard and made of stainless steel. With the features of the simple structure, easy cleaning, low noise, etc., this machine is the ideal equipment for coarse crushing．

Technical Parameter

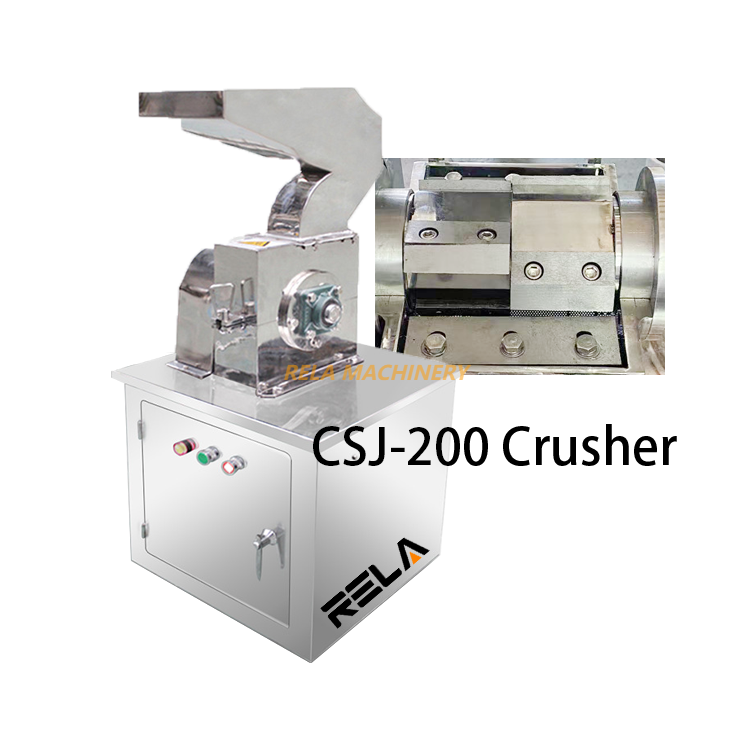

Type	CSJ-100	CSJ-200	CSJ-400	CSJ-500	CSJ-600	CSJ-800
Capacity (kg/h)	20-100	50-200	300-2000	400-3000	500-3500	800-4000
Inlet Size (mm)	≤80	≤80	≤100	≤110	≤130	≤200
Outlet Size (mm)	0.5-20	0.5-20	0.5-20	0.5-20	0.5-20	0.5-20

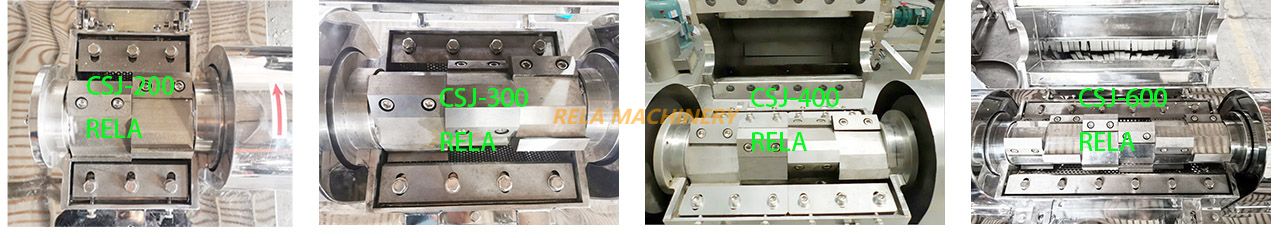

Fixed Blades (rotor)	150mm, 2pcs	200mm, 2pcs	400mm, 2pcs	500mm, 2pcs	600mm, 2pcs	400mm, 4pcs
Rotary Blades (stator)	150mm, 3pcs	100mm, 6pcs	100mm, 12pcs	100mm, 15pcs	100mm, 18pcs	100mm, 24pcs
Power (KW)	1.5/2.2	2.2/3	7.5	11	15	22
Weight (kg)	150	250	460	550	650	900
